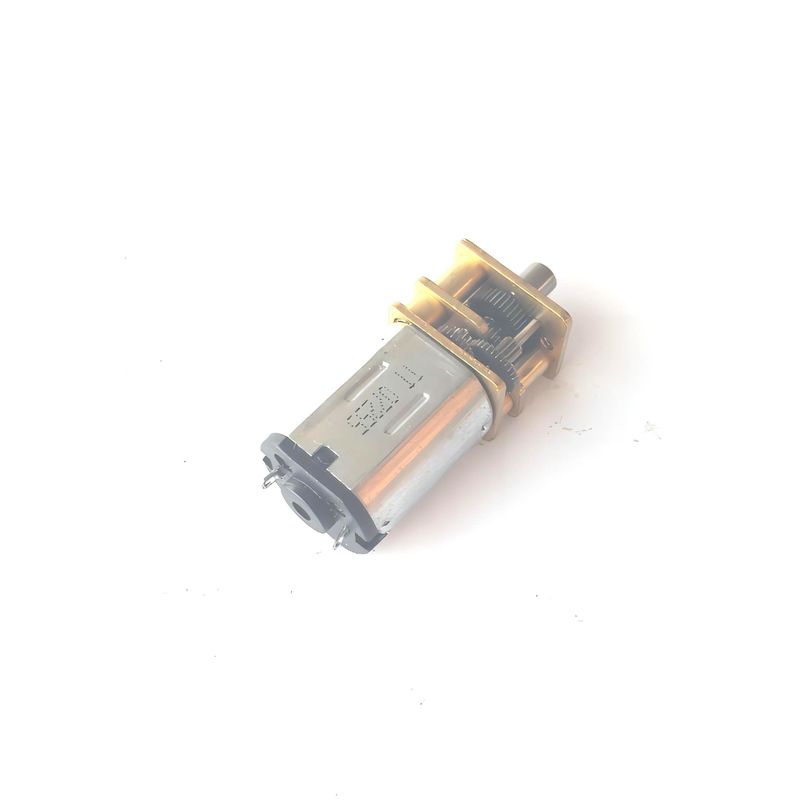

Item name: GM12-N20 or N30 DC gear motor, small size dc gear motor with low speed and big torque and competitive price
1) Small size dc gear motor with low speed and big torque
2) 12mm gear motor provide 0.1NM torque and more realiable.
3) Suitable to small diameter, low noise and big torque application
4) DC Gear motors can match encoder, 3 ppr
5) Available reduction ratio: 3, 5. 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000
Motor Technical Data
| Motor model No. |
Rated
Voltage
(VDC)
|
No Load
Speed (rpm)
|
No Load
Current
(mA)
|
Rated Speed
(rpm)
|
Rated Torque
(g.cm)
|
Rated Current
(mA)
|
Output
Power
(w)
|
Stall torque
(g.cm)
|
Stall current
(A)
|
| FF-N20VA-13110 |
2.4 |
14800 |
60 |
12000 |
2.5 |
200 |
0.31 |
13 |
1.20 |
| FF-N20VA-09220 |
5.0 |
14800 |
30 |
12000 |
2.5 |
120 |
0.31 |
13 |
0.52 |
| FF-N20VA-05430 |
12.0 |
16000 |
15 |
12500 |
3.0 |
60 |
0.35 |
13 |
0.25 |
Gear motor Technical Data / Gearbox with motor: GM12-N20VA-13110-XXX
| Reduction ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
1000 |
| Length (mm) |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
12 |
| No load speed (rpm) |
1450 |
470 |
285 |
145 |
96 |
69 |
58 |
50 |
38 |
14.5 |
| Rated speed (rpm) |
1200 |
400 |
240 |
120 |
80 |
57 |
48 |
40 |
31 |
12 |
| Rated torque (kg.cm) |
0.015 |
0.05 |
0.07 |
0.15 |
0.22 |
0.31 |
0.37 |
0.45 |
0.5 |
1.0 |
|
Max. momentary
torerance torque (kg.cm)
|
0.08 |
0.23 |
0.4 |
0.8 |
1.1 |
1.5 |
1.6 |
1.9 |
2.5 |
3.0 |
Gearbox with motor: GM12-N20VA-09220-XXX
| Reduction ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
1000 |
| Length (mm) |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
12 |
| No load speed (rpm) |
1450 |
470 |
285 |
145 |
96 |
69 |
58 |
50 |
38 |
14.5 |
| Rated speed (rpm) |
1200 |
400 |
240 |
120 |
80 |
57 |
48 |
40 |
31 |
12 |
| Rated torque (kg.cm) |
0.015 |
0.05 |
0.07 |
0.15 |
0.22 |
0.31 |
0.37 |
0.45 |
0.5 |
1.0 |
|
Max. momentary
torerance torque (kg.cm)
|
0.08 |
0.23 |
0.4 |
0.8 |
1.1 |
1.5 |
1.6 |
1.9 |
2.5 |
3.0 |
Gearbox with motor: GM12-N20VA-05430-XXX
| Reduction ratio |
10 |
30 |
50 |
100 |
150 |
210 |
250 |
298 |
380 |
1000 |
| Length (mm) |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
9.0 |
12 |
| No load speed (rpm) |
1550 |
530 |
310 |
160 |
110 |
78 |
60 |
55 |
43 |
16 |
| Rated speed (rpm) |
1100 |
400 |
250 |
125 |
83 |
60 |
50 |
42 |
33 |
13 |
| Rated torque (kg.cm) |
0.02 |
0.05 |
0.08 |
0.18 |
0.27 |
0.37 |
0.45 |
0.5 |
0.5 |
1.0 |
|
Max. momentary
torerance torque (kg.cm)
|
0.1 |
0.2 |
0.4 |
0.8 |
1.1 |
1.5 |
1.6 |
1.9 |
2.5 |
3.0 |
Please kindly tell us your specific requirement and then we will offer you accordingly soon.
