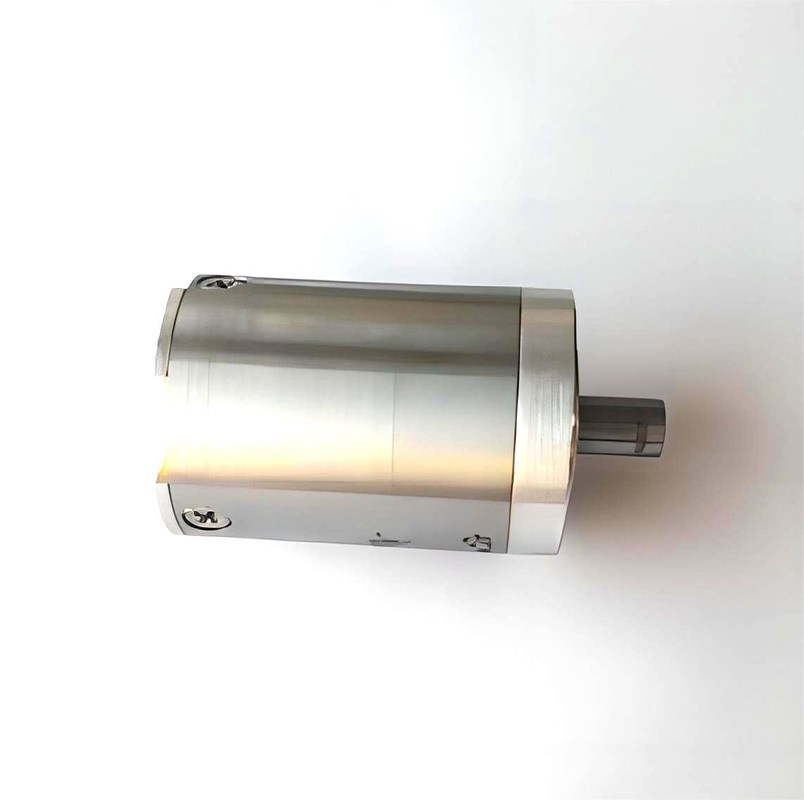

1. Item name: Metal Gear Motor Reducer 24mm planetary gearbox motor with high quality and high efficiency for electric tool
1) Small size dc gear motor with low speed and big torque
2) this gear motor provide 15 kg.cm torque and more realiable.
3) Suitable to low noise and big torque application
4) Gear ratio: 125:1
2. HYX-P24 Planet gear box dimensions with mounting ears
Mounting dc mtor type: DC motor: 370 motor
Voltage, rated torque, speed, Current, Power and shaft dimensions can be customized as per customers' requirement.
3. Technical parameters
| Stage |
Length (mm) |
Compatible motor |
Efficiency(%) |
No load backblash |
Weight |
|
| |
full steel gears |
|
370 |
(%) |
|
(g) |
|
| 1 |
/ |
|
90 |
less than 1° |
|
|
| 2 |
27.6 |
|
81 |
less than 1.8° |
|
|
| 3 |
|
|
73 |
less than 2° |
|
|
| 4 |
|
|
65 |
less than 2° |
|
|
| 5 |
|
|
|
|
|
|
Technical parameters
|
Rated
Voltage
|
Operating Condition Temperature Ragen |
No load
Speed
|
No load
Current
|
Loaded
Torque
|
Loaded
Speed
|
Loaded
Current
|
Stall
Current
|
Stall
Torque
|
Direction |
Noise |
Axial gap |
| 3.7VDC |
-20°~+50°C |
30+/-3 rpm |
<=130mA |
2.2kg.cm |
25+/-2.5rpm |
350mA |
1.8A |
15kg.cm |
CW/CCW |
<=38DB |
0.3mm max |
4. Application Scenario
1) Household appliances: Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks
2) Personal care: hair curlers, massage instruments, electric hair clippers
3) Office equipments: shredders, printers, projectors, banknote counting machines, coin counting machines
4) Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs
5) Industrial equipment: water and electrical valves, air switches, pumps, automatic door switches, automatic lubrication equipment
6) Commercial equipment: vending machines, parking locks, ATM machines, smart lamps
7) Robots: manipulators, drones, service robots
Please kindly tell us your specific requirement and then we will offer you accordingly soon.
5. Contact US
Shenzhen huaYueXin Precise ware co.Ltd
Whatsapp: +86-137-6033-4765
QQ: 460604107
Tel: 86-0755-82496832 Fax: 0755-25500780
Mobile: +86-13760334765
6. Transmission Ratio Calculation
Planetary gearbox: first stage: i=(number of teeth of internal gear/number of teeth of sun gear)+1
Multilevel: i=i1 x i2xi3...
